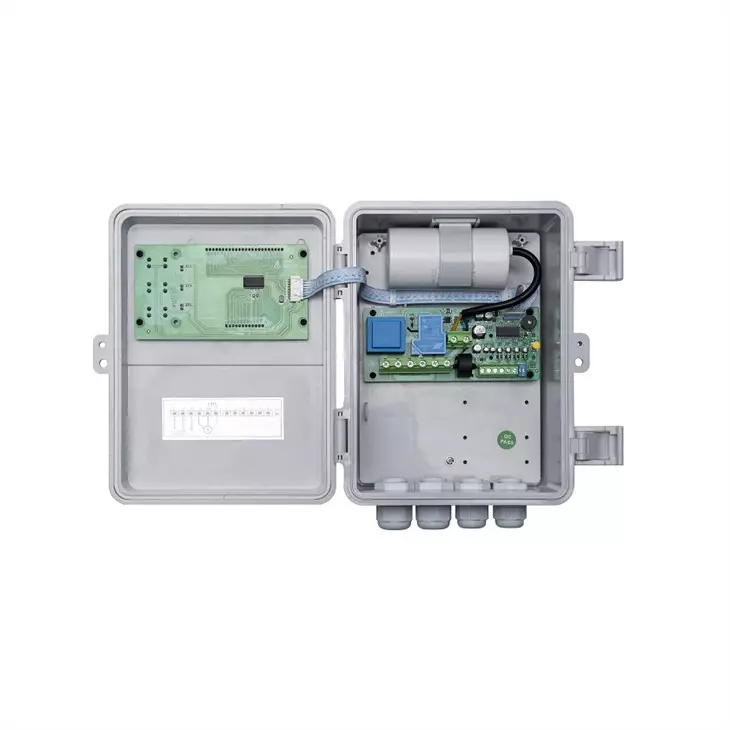

Mini1 Plus PC11 230V (no cap)

Application Modes

• Water transfer from low tank to upper tank by liquid probe or float switch
• Booster pump control by pressure switch and pressure tank
• Sewage lifting by liquid probe or float switch
• Pure cycle timer control (no logic control characteristic)
• Temperature control by PT100 sensor (expansion module required)

Protection Features

• Dry run protection with sensor-free operation
• Pump stalled protection
• Overload protection
• Under-voltage protection
• Over-voltage protection

Other Features

• Push button calibration
• Pure cycle timer control
• Pump stop timer under manual control state
• Last 5 fault records stored and displayable
• Accumulative pump running time display
• Dynamic LCD displays real-time pump running information
• Memory function on power-off and power recovery
• Overflow alarm for sewage lifting/drainage applications
• Reserved capacitor installation space (start capacitor & run capacitor)
• Optional PT100 temperature sensor expansion module
• Available in black or white housing
• All electronic components with good stability and reliable quality

Specifications

• Rated output power: 2.2 kW (3 HP)
• Rated input voltage: AC220V – 250V, Single phase, 50/60Hz
• Motor rated current: 12 A (full load)
• Max full load ampere: 20 A
• Max starting ampere: 30 A
• Start type: DOL (Direct On Line)
• Supported sensors: Float switch, Pressure switch, Liquid probe, PT100 sensor
• Working temperature: -25°C to +55°C
• Working humidity: 20% – 95% RH, no condensing
• Protection class: IP67
• Mounting: Wall mounting
• Unit dimensions (L×W×H): 228 × 193 × 116 mm
• Net weight: 0.95 kg
